# Straight Test Tuning

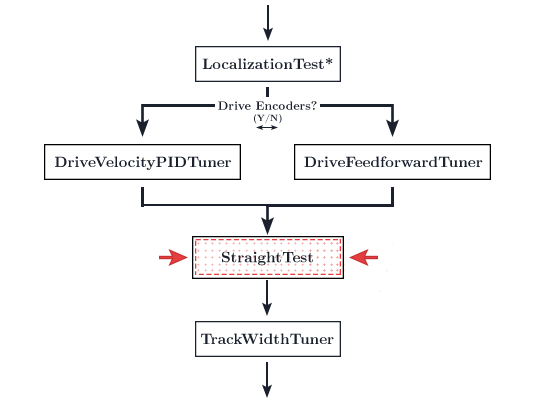

You are on the straight test step
You are here

WARNING

If you are utilizing drive encoder localization (no dead wheels), you must follow the drive encoder localization step below. This section is important for drive encoder localization tuning.

Once you've got your velocity controller tuned, you should run a quick straight test just to make sure everything is working properly.

  1. Run the StraightTest opmode via the RC.

  2. Measure the distance the bot traveled.

  3. The distance traveled should be 60 inches by default.

    • You can change this distance in Dashboard or through the opmode directly
      • If you'd like to change it in Dashboard, find the StraightTest dropdown in the variable configuration sidebar on the right. Change the DISTANCE value.
      • If you'd like to change it directly in the opmode, open the StraightTest.java file and change the DISTANCE variable on line 17.
  4. Run the StraightTest opmode like 2 or 3 times to ensure that the distance traveled is consistent within 1-3% of your specified DISTANCE. If not, your velocity controller requires further tuning. It does not need to hit the exact spot each time as you will later enable closed loop feedback using localization.

    • Your bot may drift a little to one side. Just ignore this for now. This will be corrected once the heading and translation PIDs are enabled in later steps.
  5. If everything works great, move on to the next step!

# Tuning Lateral Multiplier - Dead Wheels

WARNING

Disregard this section if you are using drive encoder localization (no dead wheels).

TIP

This isn't absolutely necessary (if you are using dead wheels). However, due to the nature of mecanum kinematics, a mecanum drive does exhibit less torque while strafing. Thus, the feedforward may require some slight compensation. If you skip this step, the translational PID will most likely pick up any discrepancy and you may not notice it at all. However, if you do see some undershooting while strafing, you will be interested in applying a lateral multiplier.

See this paper for more details on the strafing inefficiency.

  1. Run the StrafeTest opmode via the RC.
  2. This opmode will strafe right at the specified distance. You are free to change the code to strafe left.
  3. The distance traveled should be 60 inches by default. However, it may undershoot. If so, measure the distance traveled.
  4. Take your target distance (60 inches by default) and divide it by the actual distance traveled.
  5. Set your LATERAL_MULTIPLIER in SampleMecanumDrive.java (line 57) to this value.
  6. Run the StrafeTest opmode again and now it should go the correct distance.

# Drive Encoder Localization

If you are using drive encoder localization (no dead wheels), you will need to tune your localization in the StraightTest and StrafeTest steps.

# Straight Test

  • Run the StraightTest opmode. The opmode will print the x and y distance traveled once finished.
  • Your bot may drift to one side. This will be fixed later once translational and heading PID is enabled.
  • Measure how far your bot travels during the StraightTest (with a tape measure). Then compare the measured value with the telemetry's finalX value.
  • If the reported finalX value does not match up with the measured distance, multiply GEAR_RATIO in DriveConstants.java (or in the variable sidebar for testing) by measured distance / reported x value.
  • You may want to do this more than once to fine tune the localization. Even a 1% increase in accuracy makes a difference.

# Strafe Test

  • Run the StrafeTest opmode. The opmode will print the x and y distance traveled once finished.
  • Your bot may drift forward or back quite a bit. This will be fixed later once translational and heading PID is enabled.
  • Measure how far your bot travels during the StrafeTest (with a tape measure). Then compare the measured value with the telemetry's finalY value.
  • If the reported finalY value does not match up with the measured distance, set the LATERAL_DISTANCE variable SampleMecanumDrive.java (or in the variable sidebar for testing) to measured distance / reported y value.
  • You may want to do this more than once to fine tune the localization. Even a 1% increase in accuracy makes a difference.

# Troubleshooting

# Does your straight test go backwards or turn in a circle?

Reverse your motor directions. Instructions on where to do this can be found here.

# Is your straight test consistent but it doesn't travel the specified distance?

Check your DriveConstants.java file. Something went wrong in here. One of these constants may be directly related to the problem:

  • TICKS_PER_REV - check the encoder ticks and make sure that it corresponds with the spec sheet

  • MAX_RPM - check the max rpm and make sure that it corresponds with your motor's specced rpm

  • WHEEL_RADIUS - this should match your drive train's wheel radius. Make sure this isn't diameter

  • GEAR_RATIO - if this is 1:1 dont worry about it. Make sure your ratio is output:input instead of reversed

If you still can't figure out the problem, just scale the WHEEL_RADIUS to adjust the distance.
